Description

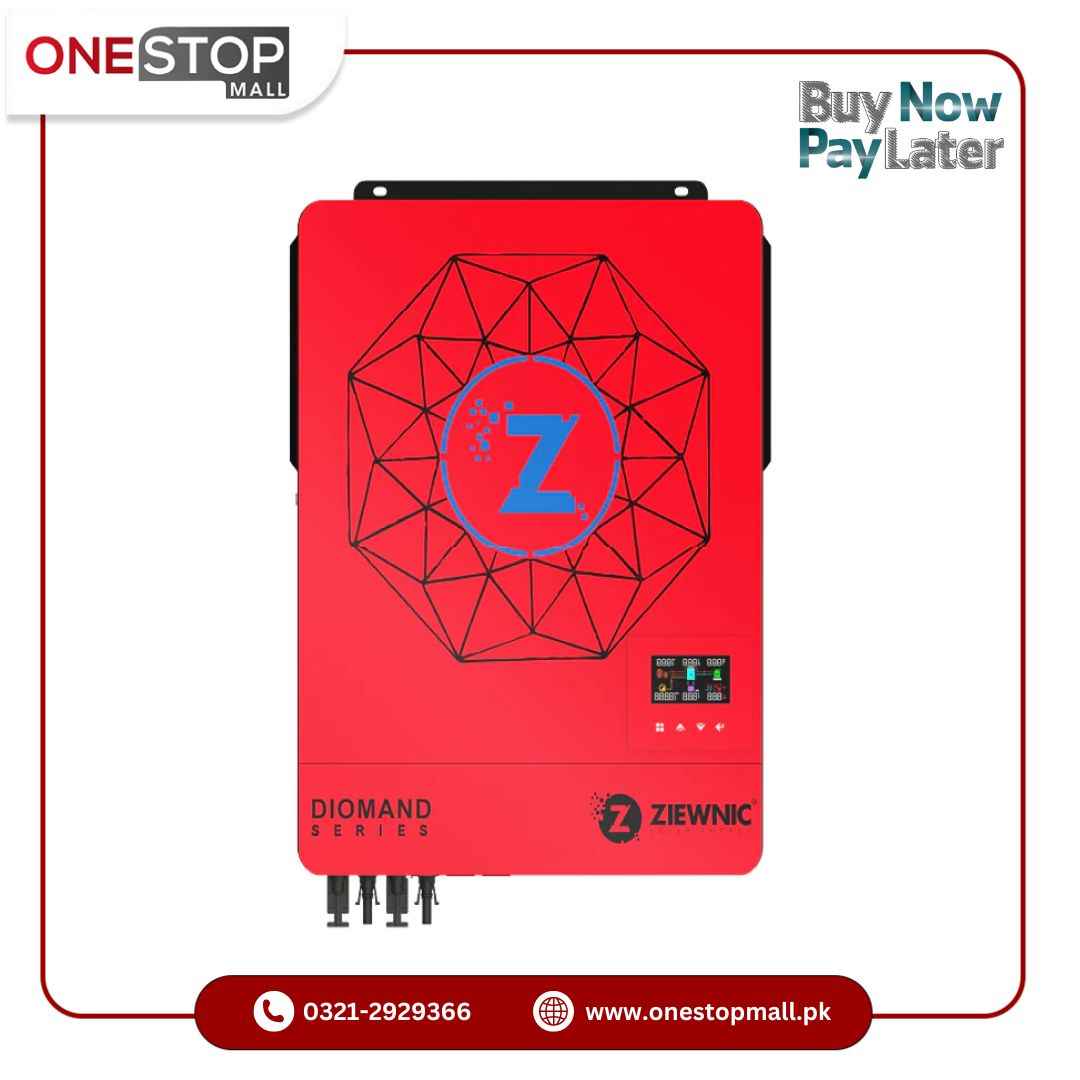

xZIEWNIC Diamond Solar Hybrid Inverter 8.5 (KW) 5G PV10000 Inverter ON/OFF/MKS/KS100 % Pure Sine wave 5 Years Brand Warranty
- Introducing 1st Time In Pakistan Real 5th Gen Inverter, Supporling high efficiency Mosfet, Chopper with bigger size
- DIAMOND Series Inverter supports Multiple operation modes (ON/OFF/MKS/KS)
- 100% Pure Sine Wave Solar Inverter
- Output power factor 1.0
- Optional Wi-Fi available for IOS/Android devices
- Inverter running with battery & without battery
- 1 button restore setting options in program (00)
- Battery equilizations in program (30)
- Record fault code feature in program (25)
- Adaptable to main Voltage / generator power
- Conformal coating to prevent from dust and humidity
- Built-in automatic electronics breaker for overload & short circuit protection
- New Color Screen LCD function design with touch buttons
- Built-in anti dust for harsh environment
- Compatible with all kinds of Lithium Batteries
- 98% Real time sharing
- Overload Protection on 120% Load
- Surge Capacity 2* Rated Power for 5 Seconds
- Battery charging current upto 300A (AC+Solar)
- MPPT Based Solar Charge Controller (160A)
- High PV input voltage range (90~550 VDC)
- Two output for normal and heavy load
- Maximum input current 27A
- Multiple operation modes (On Grid / Of Grid / Hybrid
- Grid-Tied net metering feature with 100% reverse grid feeding
- Builtin Zero export
- Two PV input parallel based MPPT controller for PV10000 & PV13000
- Designed and Engineered in Taiwan
| SPECIFICATION | |
|---|---|
| Phase | 1-Phase |
| Maximum PV Input Power | 10000 W |
| Rated Output Power | 8500 W |
| Maximum Solar Charging Current | 160 A |
| GRID TIE OPERATION | |
| PV INPUT ( DC ) | |
| Nominal DC Voltage/Maximum DC Voltage | 360 VDC/500 VDC |
| Start-up Voltage/Initial Feeding Voltage | 90 VDC/120 VDC |
| Maximum DC Voltage | 90~450 VDC |
| Number of MPPT Trackers/Maximum Input Current | 27 A |
| GRID OUTPUT ( AC ) | |
| Nominal Output Voltage | 220/230/240 VAC |
| Output Voltage Range | 195.5-253 VAC |
| Nominal Output Current | 38 A |
| Power Factor | >0.99 |
| Feed-in Grid Frequency Range | 49~51±Hz |
| EFFICIENCY | |
| Maximum Conversion Efficiency( Soar to AC) | 98% |
| TWO LOAD OUTPUT POWER(V2.0) | |
| Full Load | 8500 W |
| Maximum Main Load | 8500 W |
| Maximum Second Load(battery mode) | 2833 W |
| Main Load Cut Off Voltage | 44 VDC |
| Main Load Return Voltage | 54 VDC |
| OFF-GRID OPERATION | |
| AC Input | |
| AC Start-up Voltage/Auto Restart Voltage | 120-140 VAC/180 VAC |
| Acceptable Input Voltage Range | 90-280 VAC or 170-280 VAC |
| Maximum AC Input Current | 40 A |
| Nominal operating frequency | 50/60Hz |
| Surge power | 17000W |
| BATTERY MODE OUTPUT ( AC ) | |
| Nominal Output Voltage | 220/230/240 VAC |
| Output Waveform | PURE SINE WAVE |
| Efficiency(DC to AC) | 94% |
| BATTERY & CHARGER | |
| Nominal DC Voltage | 48 VDC |
| Maximum Charging Current (Solar to AC) | 160 A |
| Maximum AC Charging Current | 140 A |
| GENERAL | |
| PHYSICAL | |
| Dimension,D x W X H(mm) | 420*310*110 |
| Net Weight(kgs) | 14.2 |
| INTERFACE | |
| Communication Port | RS232/WI-FI/GPRS |
| ENVIRONMENT | |
| Operating Temperature | -10~50°C |
