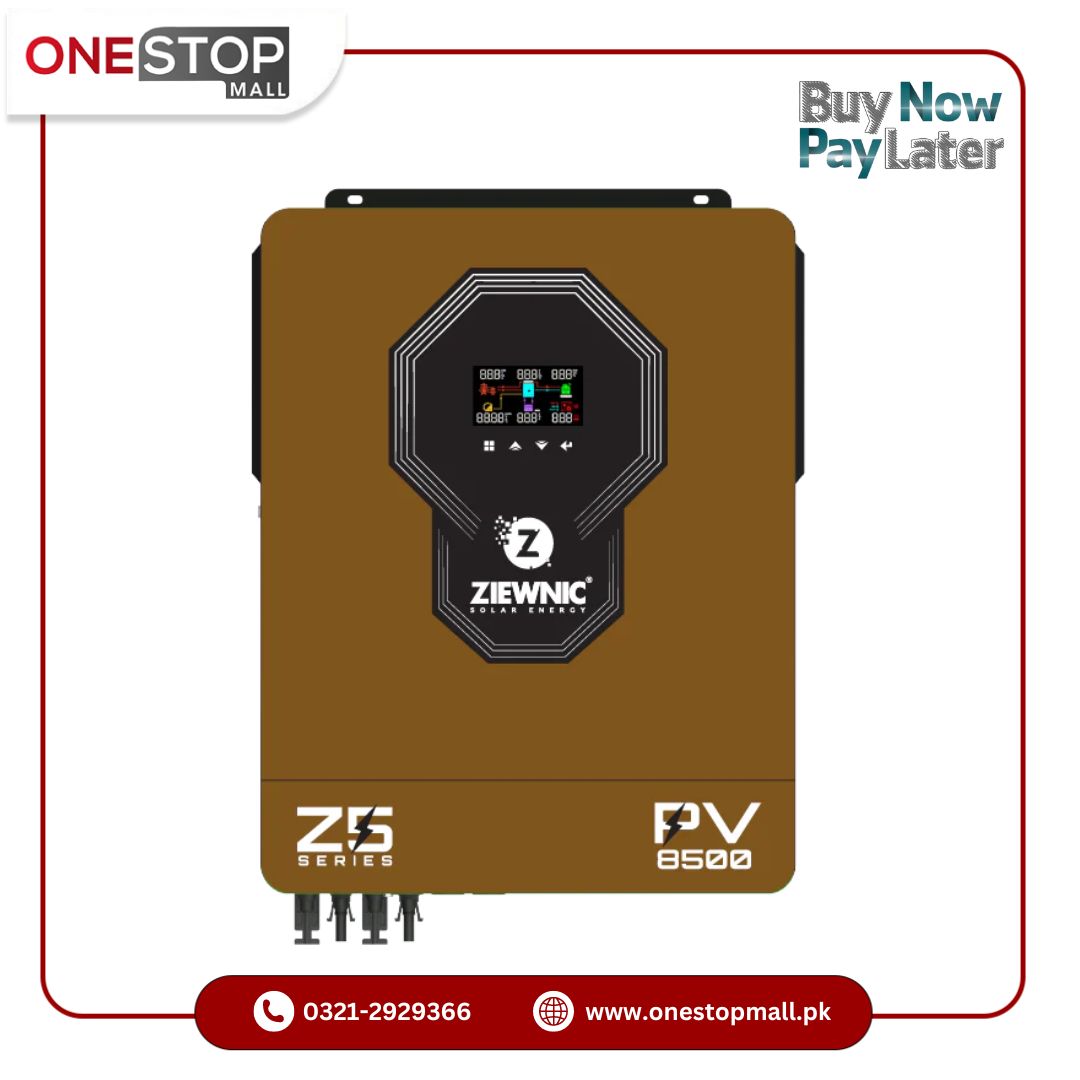

ZIEWNIC Z5 Series Hybrid Inverter 6.5 (KVA) 6G PV8500 ON/OFF/MKS/KS Solar 100% Pure Sine Wave Solar Inverter  5 Years Brand Warranty



  • Introducing 1st Time In Pakistan Real 6th Gen Inverter, Supporting high efficiency Mosfet, 3 Chopper
  • Inverter supports Multiple operation modes (ON/OFF/MKS/KS)
  • 100% Pure Sine Wave Solar Inverter
  • Introducing 1st Time In Pakistan Real 6th Gen Inverter, Supporting high efficiency Mosfet, 3 Chopper
  • Inverter supports Multiple operation modes (ON/OFF/MKS/KS)
  • 100% Pure Sine Wave Solar Inverter
  • Output power factor 1.0
  • Battery equilizations in program (30) Record fault code feature in program (25)
  • Adaptable to main Voltage/generator power
  • Conformal coating to prevent from dust and humidity
  • Grid-Tied net metering feature with 100% reverse grid feeding Builtin Zero export
  • Built-in automatic electronics breaker for overlood & short circuit protection
  • Overload Protection on 120% Load Surge Capacity 2 Rated Power for 5 Seconds
  • New Color Screen LCD function design with touch buttons
  • Optional Wi-Fi available for IOS/Android devices
  • Inverter running with battery & without battery
  • 1 button restore setting options in program (00)
  • Built-in anti dust for harsh environment
  • Compatible with all kinds of Lithium Batteries
  • 98% Real time sharing
  • Battery charging current upto 280A (AC + Solar)
  • MPPT Based Solar Charge Controller (180A)
  • High PV input voltage range (90-550 VDC)
  • Dual output for heavy and normal load
  • Two PV port parallel based 32 A
  • Multiple operation modes (On Grid/ Off Grid/Hybrid)
  • European Design and Engineered in Taiwan







SPECIFICATION
Phase 1-Phase
Maximum PV Input Power 8500W
Rated Output Power 6500W
Maximum Solar Charging Current 180A
GRID TIE OPERATION
PV INPUT ( DC )
Nominal DC Voltage/Maximum DC Voltage 360VDC/500VDC
Start-up Voltage/Initial Feeding Voltage 90VDC/120VDC
Maximum DC Voltage 90~450VDC
Number of MPPT Trackers/Maximum Input Current TWO PV PORT PARALLEL BASED 32A
GRID OUTPUT ( AC )
Nominal Output Voltage 220/230/240VAC
Output Voltage Range 195.5~253VAC
Nominal Output Current 29A
Power Factor >0.99
Feed-in Grid Frequency Range 49~51±1Hz
EFFICIENCY
Maximum Conversion Efficiency( Solar to AC) 98%
TWO LOAD OUTPUT POWER(V2.0)
Full Load 6500W
Maximum Main Load 6500W
Maximum Second Load(battery mode) 2166W
Main Load Cut Off Voltage 44VDC
Main Load Return Voltage 54VDC
OFF-GRID OPERATION
AC Input
AC Start-up Voltage/Auto Restart Voltage 120-140VAC/180VAC
Acceptable Input Voltage Range 120-140VAC/180VAC
Maximum AC Input Current 40A
Nominal operating frequency 50/60Hz
Surge power 13000W
BATTERY MODE OUTPUT ( AC )
Nominal Output Voltage 220/230/240VAC
Output Waveform Pure Sine Wave
Efficiency(DC to AC) 98%
BATTERY & CHARGER Nominal DC Voltage 48VDC
Maximum Charging Current (Solar to AC) 180A
Maximum AC Charging Current 100A
GENERAL
PHYSICAL
Dimension, D X W X H(mm) 420*310*110
Net Weight(kgs) 14.2
ENVIRONMENT
Operating Temperature. -10~50°C
